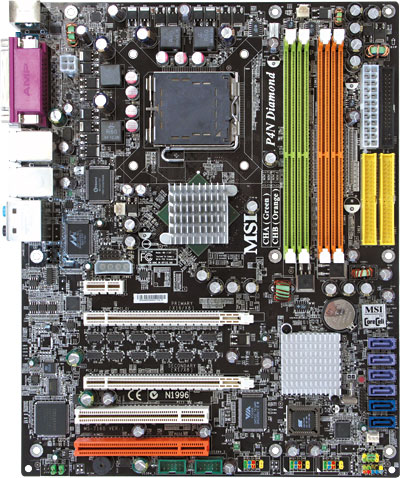

MSI vient de sortir une nouvelle carte mère pour Pentium 4, celle-ci intégre le nForce 4 SLI de nVIDIA, la P4N Diamond.
Voici les spécifications de la cartes :
- CPU :
supporte les Intel® P4, P4EE, Pentium D, Pentium XE and Celeron D en socket 775.
FSB 1066/800 MHz
Support de l'Hyper-Threading - Chipset :
NVIDIA® nForce4 SLI Intel Edition Chipset
- HyperTransport link to nVidia MCP04 south bridge
- Supports 2 PCI Express x 16 and 1 PCI Express x 1 interface
- Supports dual channel, DDR2 400/ 533/ 667
NVIDIA® MCP04 (for nForce4 SLI Intel Edition) Chipset
- Integrate SATA-II controller, four drives
- Dual Fast-ATA 133 IDE controller, for four devices
- IEEE 802.3 nVIDIA MAC for 1000BASE-T - Mémoire : Support du dual channel DDR2 400/533/667 (240-pin/1.8V DDR2 DIMMs), Supporte un maximum 16Go
- Slot PCI :
2 PCI Express x16 slot
1 PCI Express x1
2 PCI 32 bits - 2 ports IDE
- 4 SATA et 2 SATA II
- Audio : Creative sound Blaster Live 24-bit H/W audio controller CA0106
- Internal I/O Connectors :
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- 4-pin GPU power connector
- CPU / System / Power / NB FAN connectors
- 1 x IrDA infrared module header
- 1 x MSI D-Bracket 2 Connector
- CD-in connector
- Front panel audio connector
- Front panel connector
- 2 x IEEE1394 connector support additional 2 ports
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 6 x serial ATA connectors
- 2 x ATA133 HD connectors - Back Panel I/O Ports :
- 1 x Parallel port
- 1 x Serial port (COM 1)
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x Coaxial SPDIF out
- 1 x 6 in 1 Audio jack (S/SPDIF out)
- 1 x IEEE1394 port
- 4 x USB 2.0 ports
- 2 x RJ45 LAN Jacks - Dimension : 30.5cm(L) x 24.4cm(W)
- Format carte mère : ATX
Source : Info-Mods
